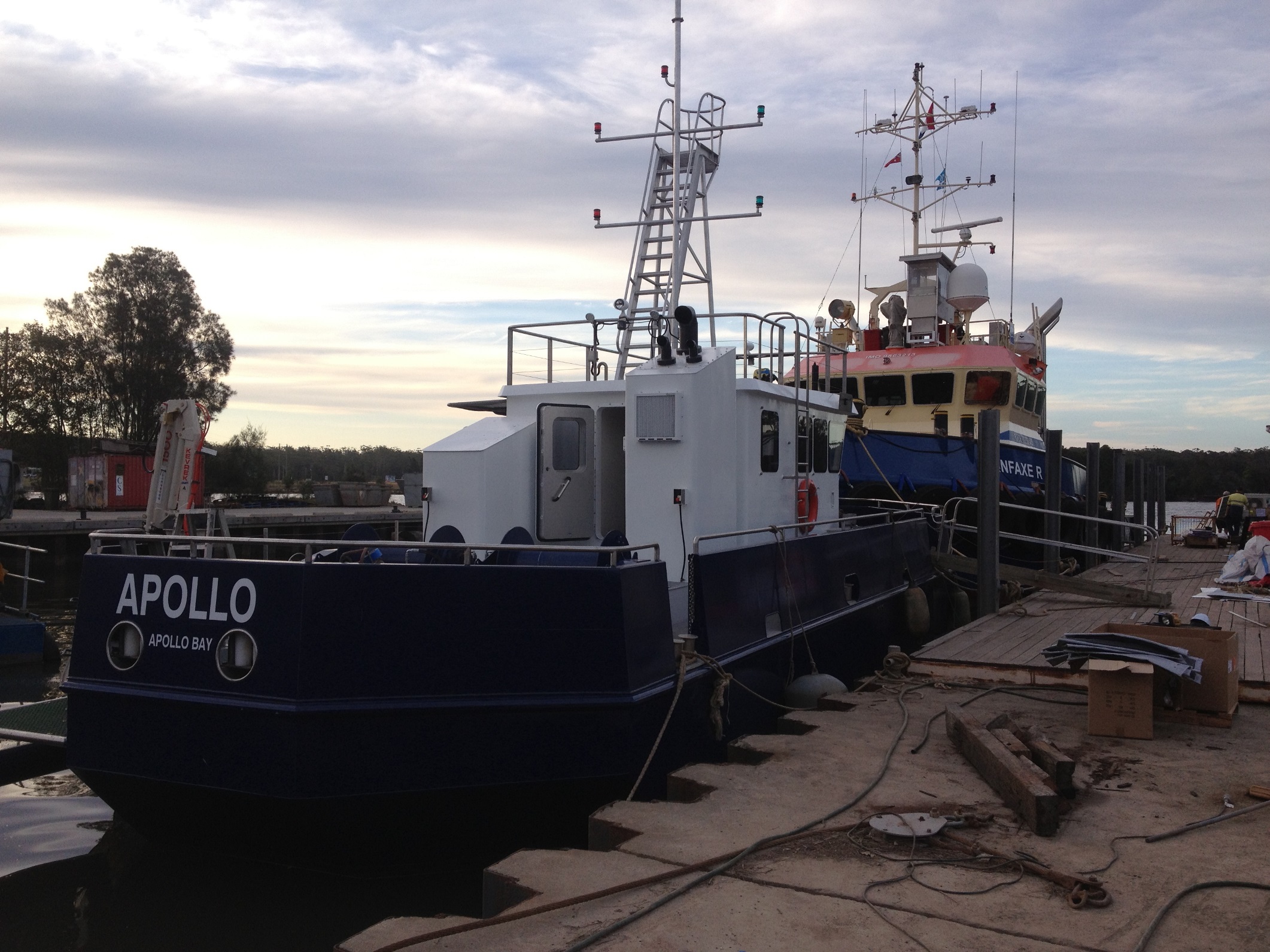

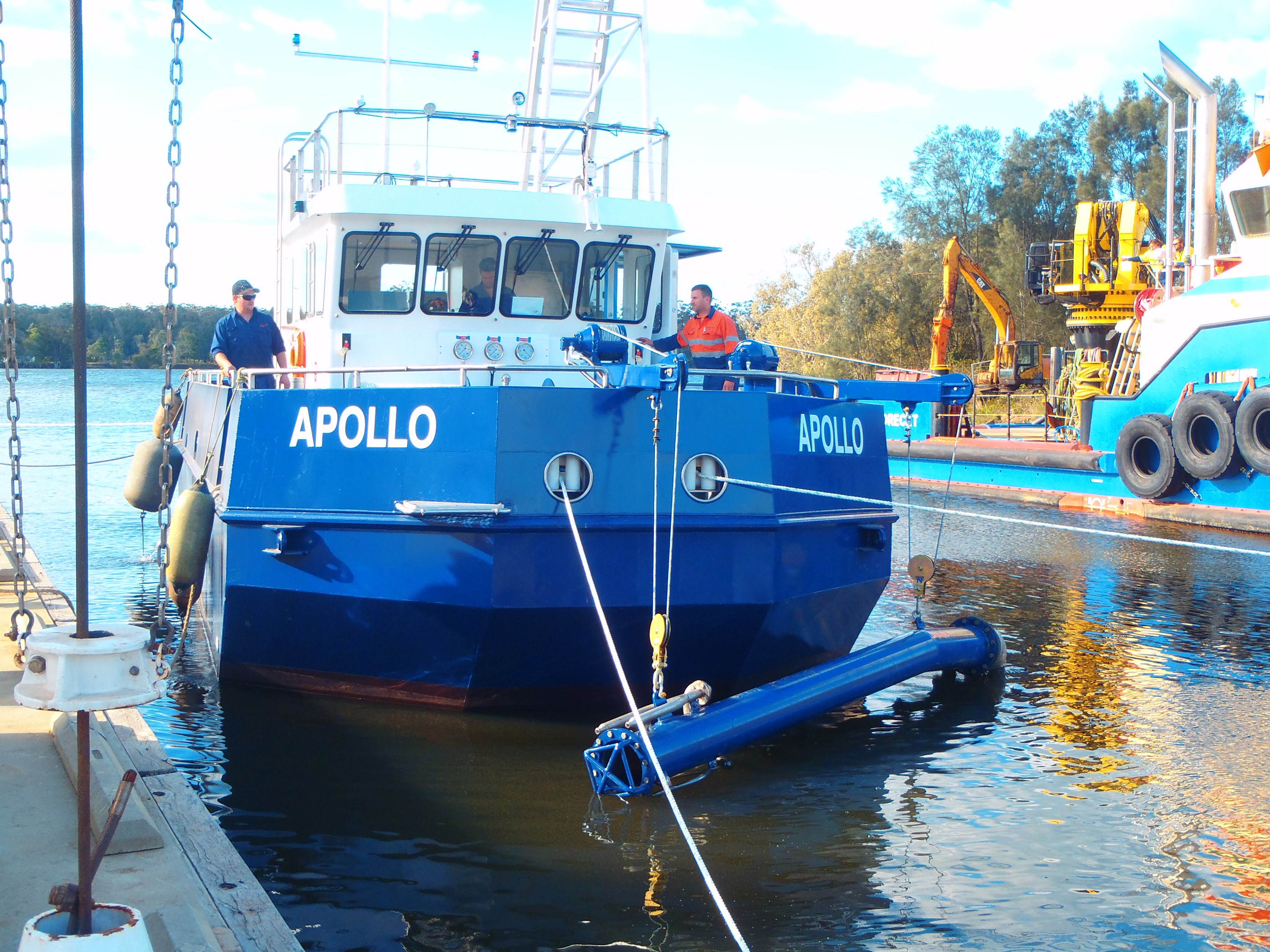

Apollo Bay Dredge built by Birdon Marine

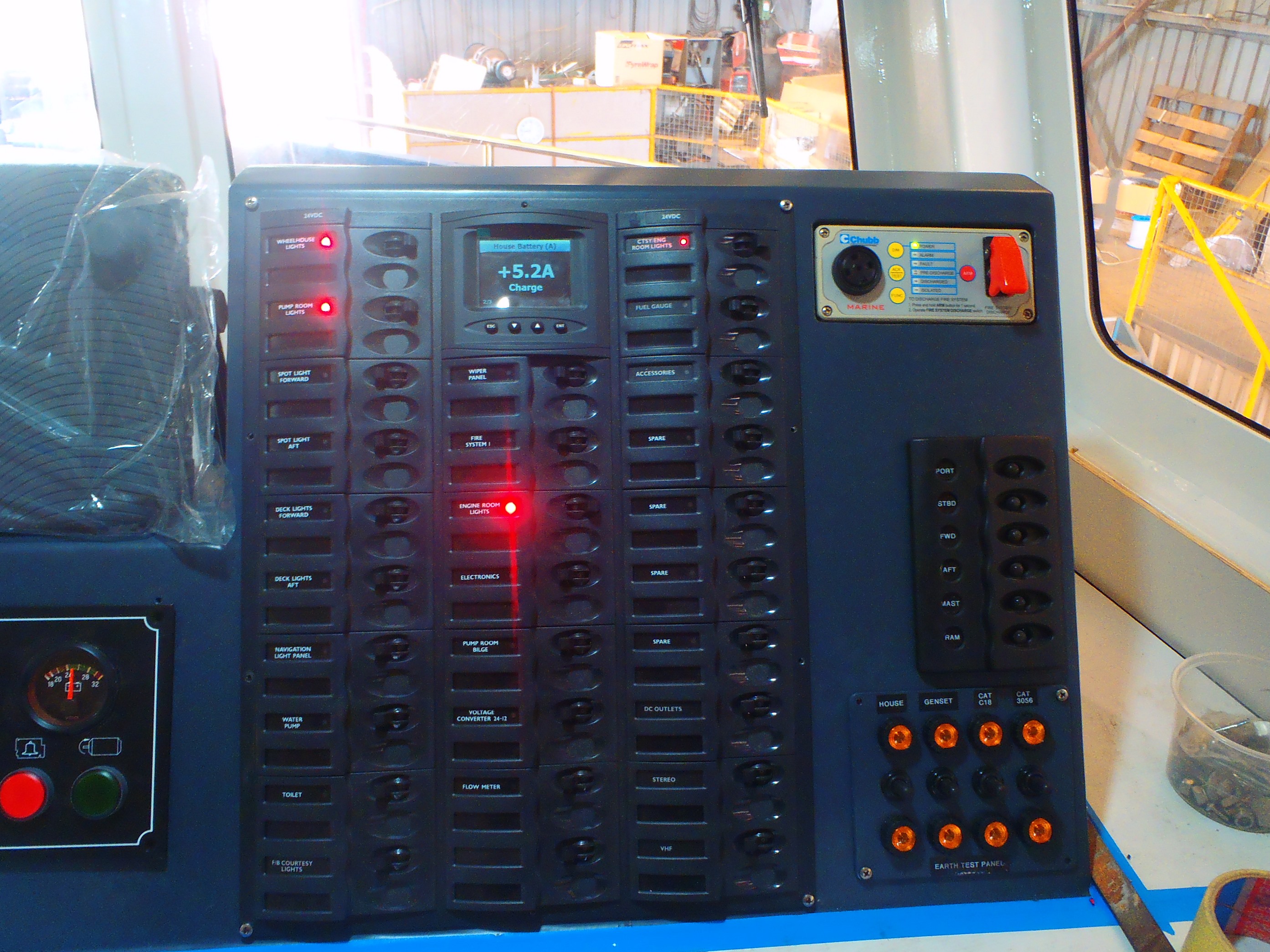

24V 2pole Custom BEP switch panel
trials

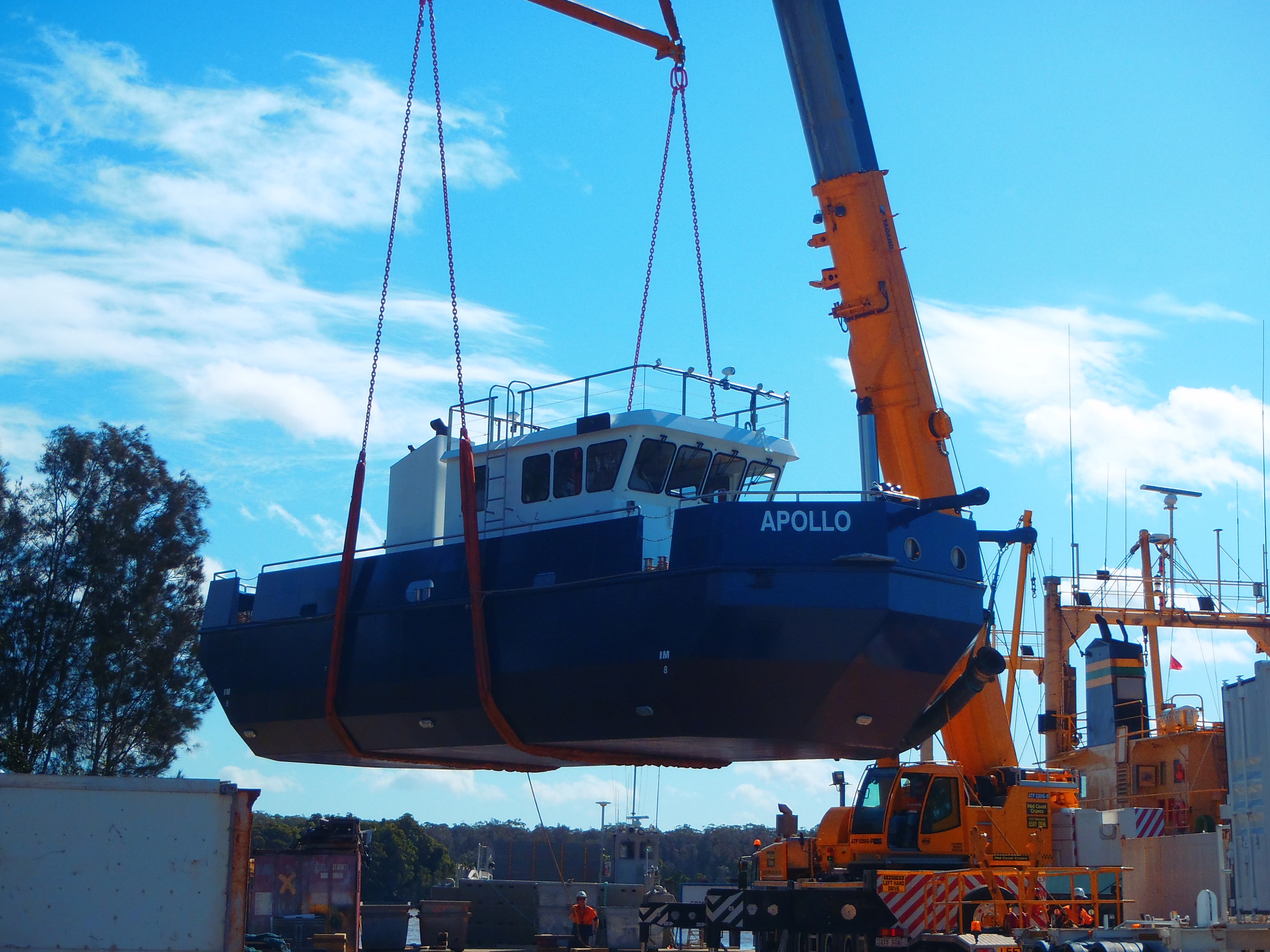

The lift

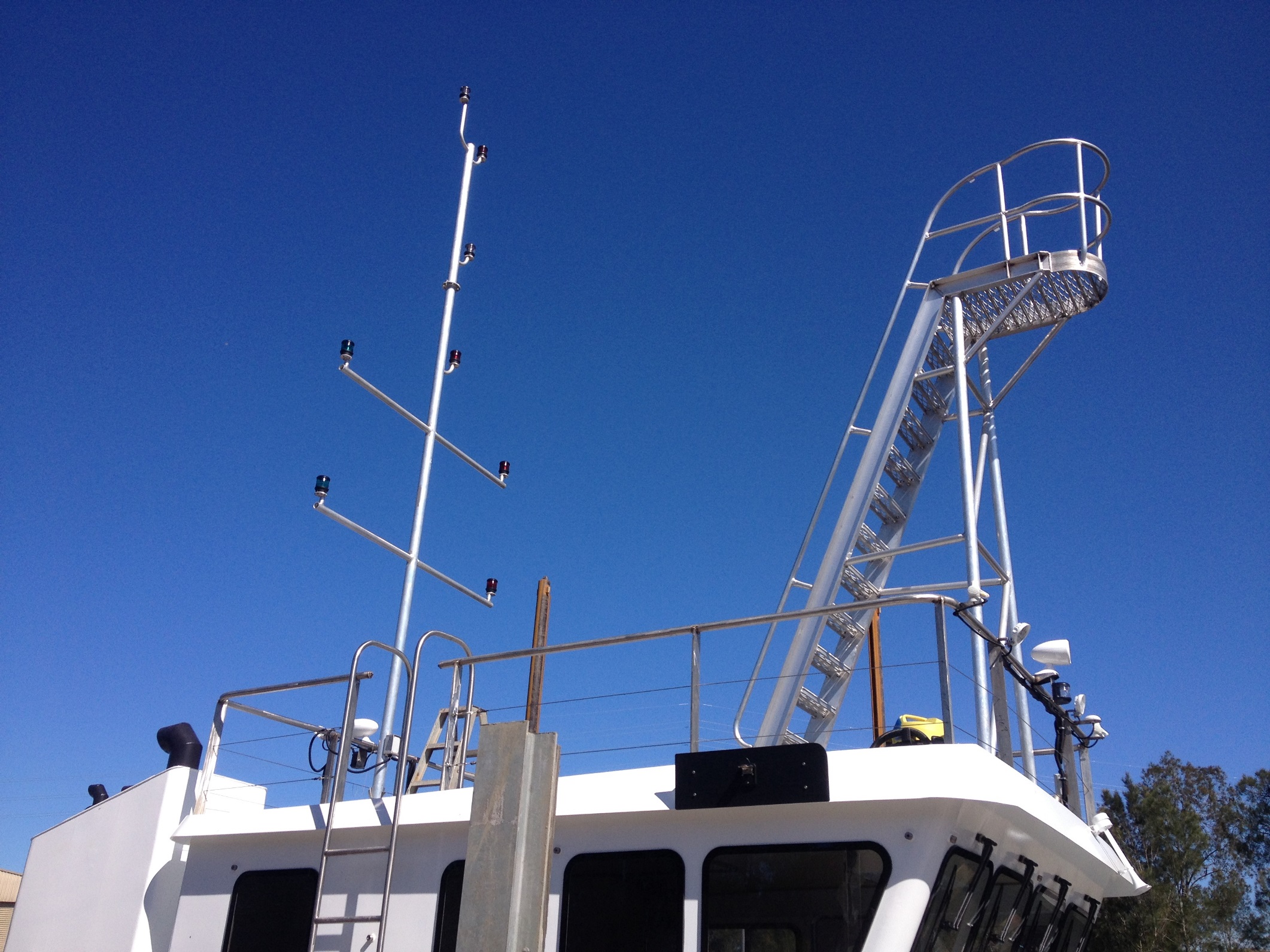

RAM lights

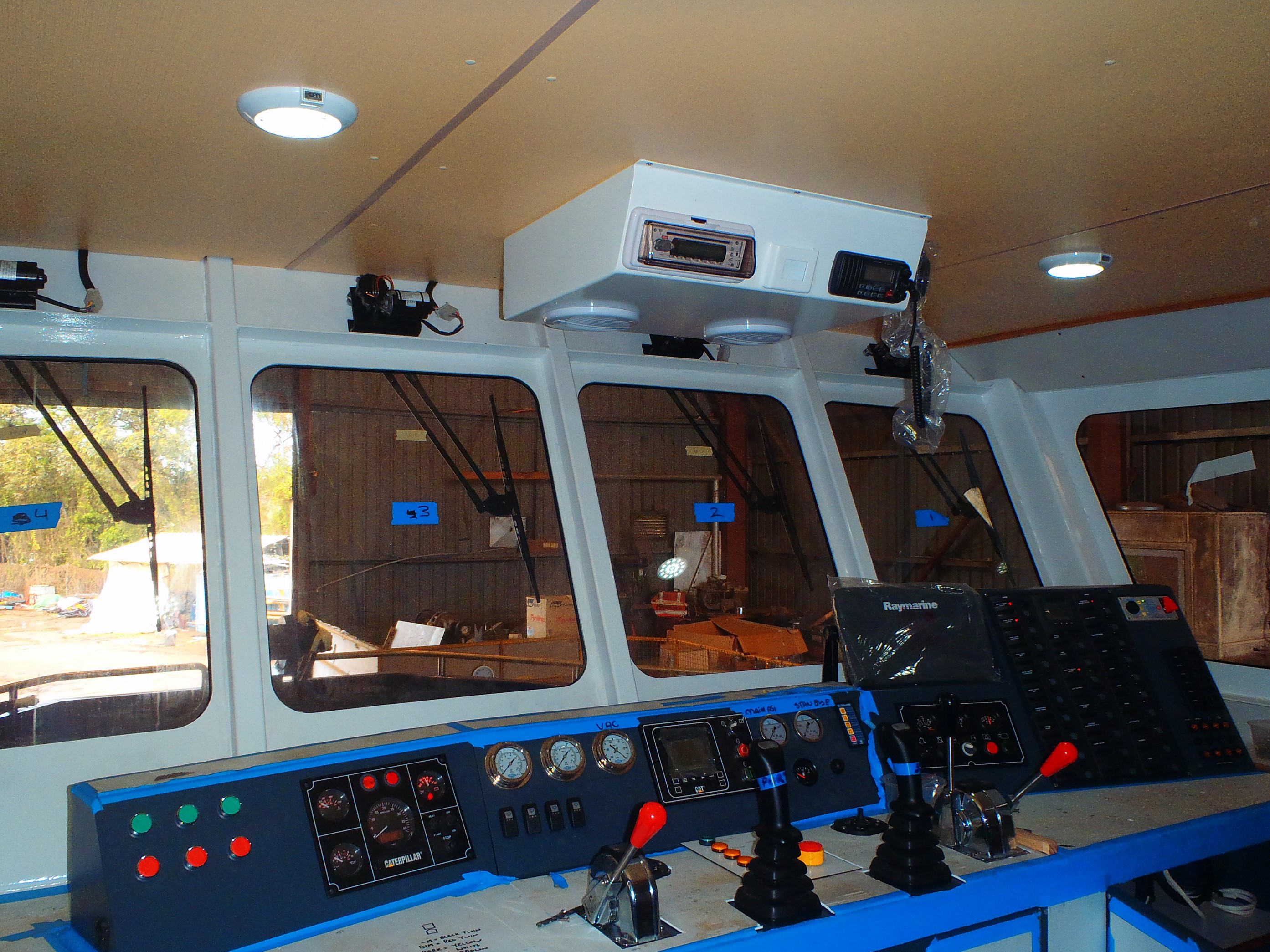

Wheelhouse fitout
4T Aft Deck winches
RMC is proud to have just completed a large Electrical installation on a 16M Harbour Dredge, The vessel will work Apollo Bay on the great ocean road Victoria Australia.
The installation included Full Double pole Custom designed Electrical switching and battery management System to NSCV-LLOYDS standards, Raymarine Electronics and BEP Switching and battery management components.

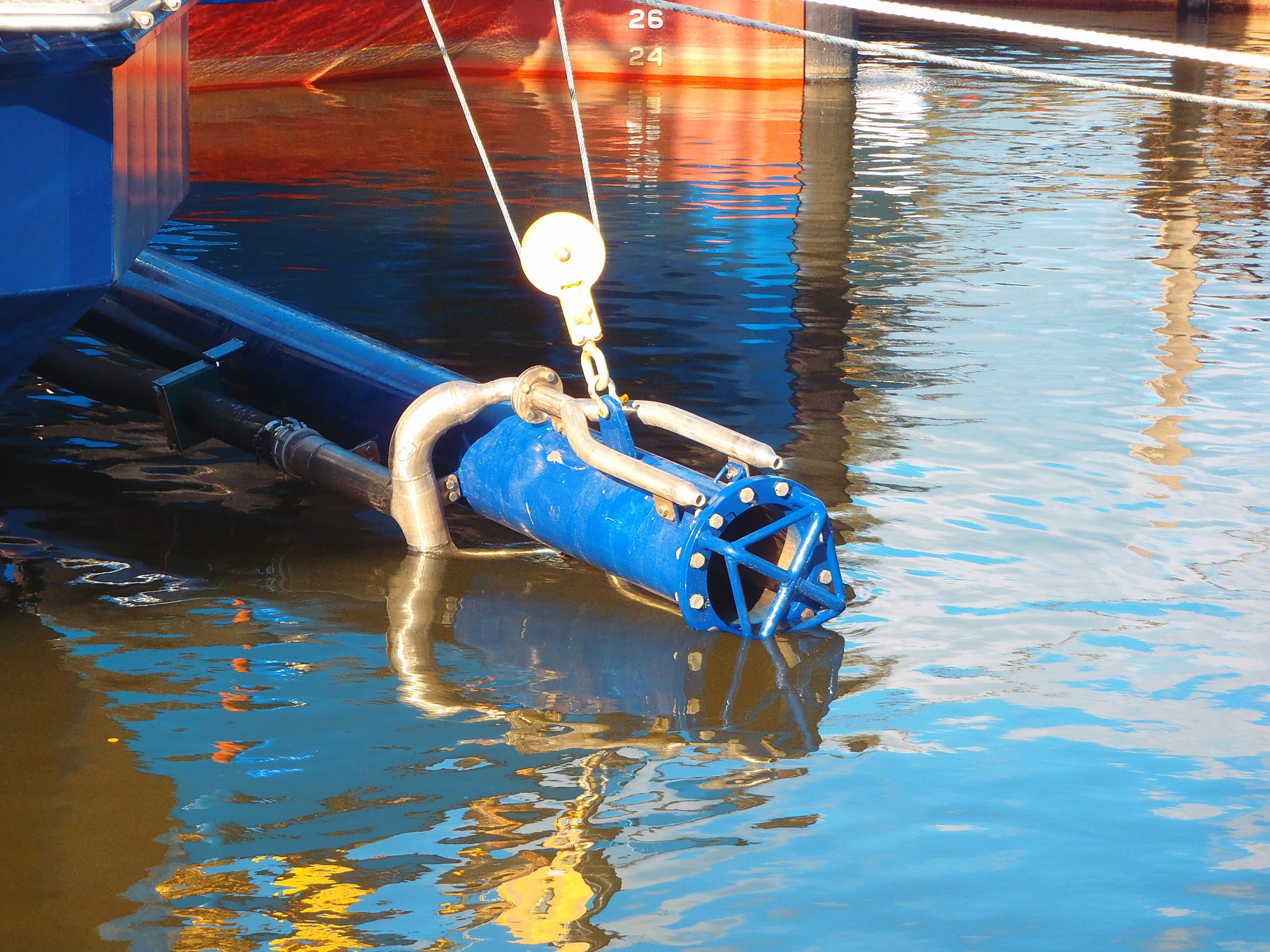

The vessel required 3 x Caterpiller Engines 1 x C18 to operate the Dredge pump 1 x 3056 for the jetter pump and 1 x C4.4 Caterpiller Genset, She was also fitted with 4 x Hepworth AMI supplied wiper systems, Remote spotlights, Saniloo waste system, Stat X fire suppression system and LED lighting throughout including Aquasignal Navigation and RAM lighting up top.
She was also fitted with Icom communications in the bridge.
Enerdrive 24v to 12V DC converters where used to control essential DC 12v circuits
